ECG Simulator Simcardio121 – شرکت موج پرداز تصویر

ECG & Arrhythmia Simulator Simcardio 121

12-Lead Conifiguration with independent Output to Use

Small,portable,Easy To Use

Rates:10 to 300

Arrhythmia Selection:

Tachycardia, Bradycardia, Bigeminy, Trigeminy, Atrium Fibril, Atrium Flutt, RUN, Frequent, R-ON-T Wave, Multi, VT, VF,PACE,ECG & PACE, Calibration.

Display: 2* 16Character LCD

ECG Performance:Normal ECG (40 to 120) BPM

Power: Internal Rechargeable Battery Li-ion 7.4V – 1A

Weight: 450 g
Dimensions: 18cm x 9cm x 3cm

Cables that connect to the device

The device’s lateral plugs are color-coded according to European and American standards, ensuring compatibility with all models of ECG cable connectors .

Ability to set Rate (10 to 300)

In this device, the rate can be adjusted and set within a range of 10-300 BPM for arrhythmias and 40-180 BPM for normal mode.

Easy and convenient to use

Easily select one of the arrhythmias using the device’s 2×16 LCD screen and keyboard, and verify the integrity of the ECG cables.

Rechargeable battery, Li-ion 7.4V-1A

The ECG simulator achieves a full charge within one to one and a half hours, providing up to three to four days of battery life based on typical usage.

Small, light and portable

Weight: 450 g
Dimensions: 18cm x 9cm x 3cm

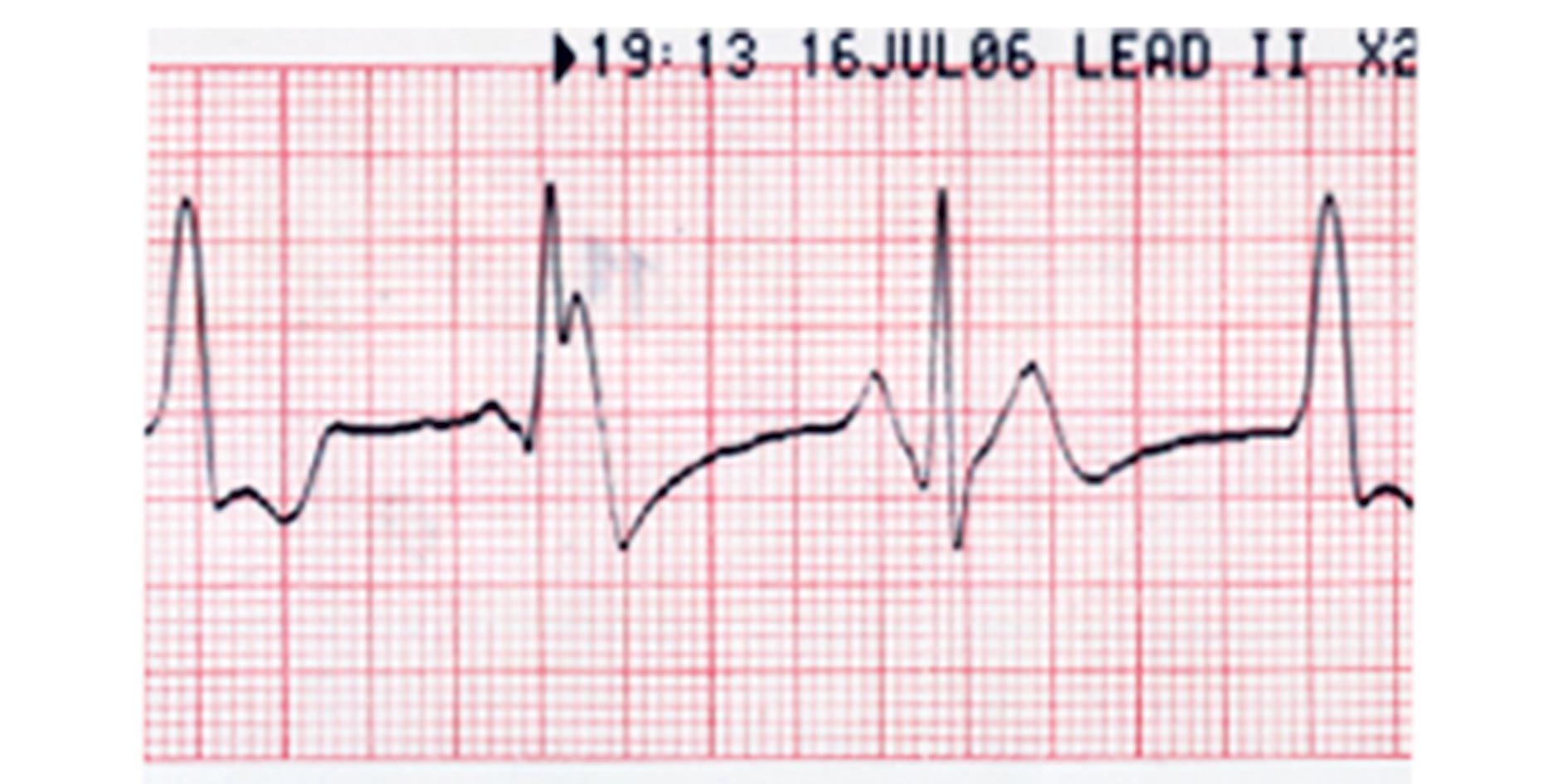

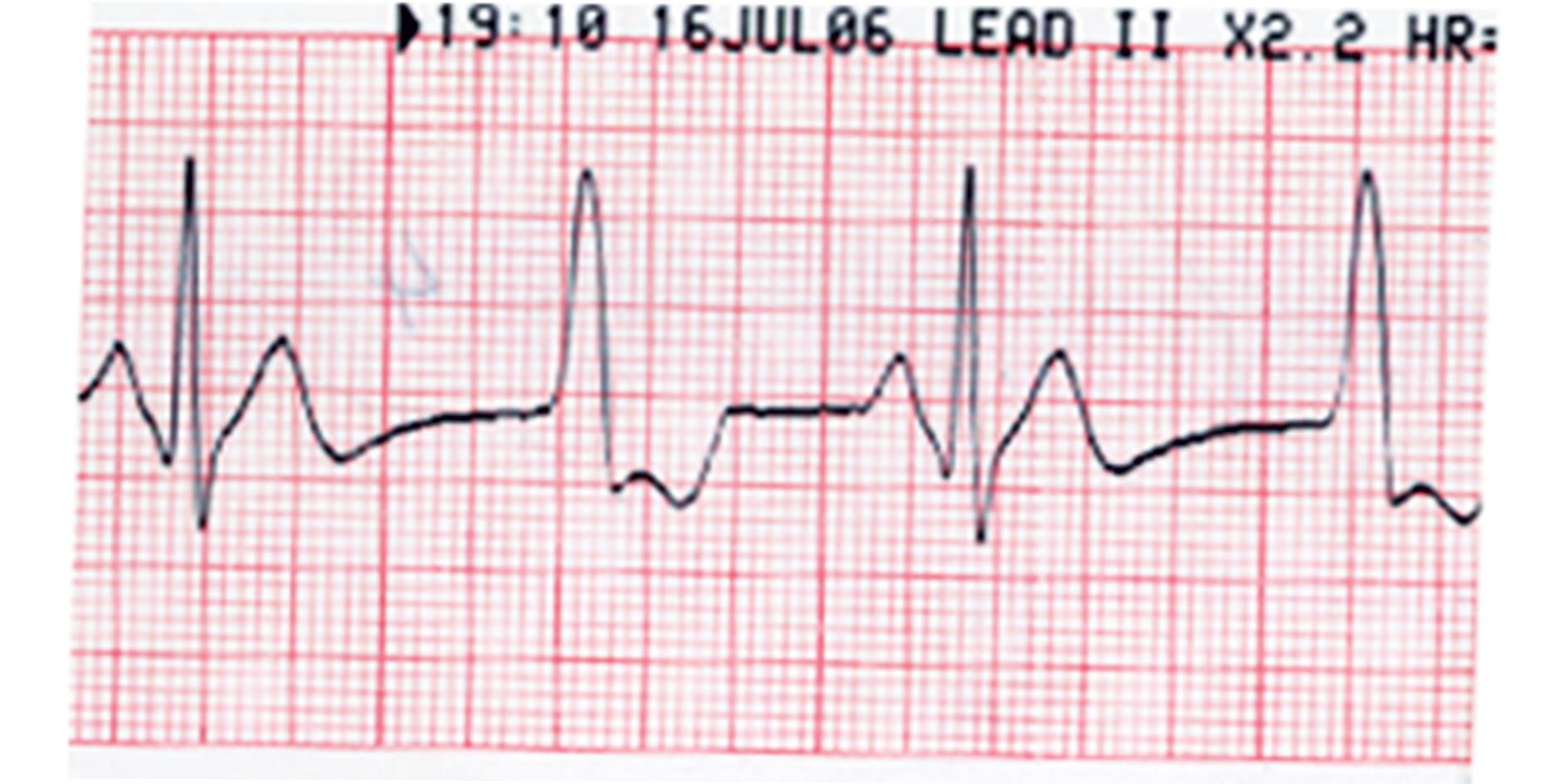

Arrhythmias that the device produces

The device is capable of producing fourteen types of arrhythmias in addition to normal and calibrated modes. The names of the arrhythmias that the device produces are:

1:NORMAL
HR:40-180 BPM

2:Bradycardia
HR:10-30 BPM

3:Tachycardia
HR:130-300 BPM

4:Bigeminy
HR:40-180 BPM

5:Trigeminy
HR:40-180 BPM

6:Atrium Fibril
HR:40-180 BPM

7:Atrium Flutt
HR:40-180 BPM

8:RUN
HR:40-180 BPM

9:Frequent
HR:40-180 BPM

10:R-ON-T Wave
HR:40-180 BPM

11:Multi
HR:40-180 BPM

12:VT
HR:130-300 BPM

13:VF
HR:300 BPM

14:PACE
HR:40-180 BPM

15:ECG & PACE
HR:40-180 BPM

16:Calibration
HR:60 BPM
